ZLP630

  • 6 meters ZLP630  temporary suspended working platform for building repair
  • 6 meters ZLP630  temporary suspended working platform for building repair
6 meters ZLP630  temporary suspended working platform for building repair6 meters ZLP630  temporary suspended working platform for building repair

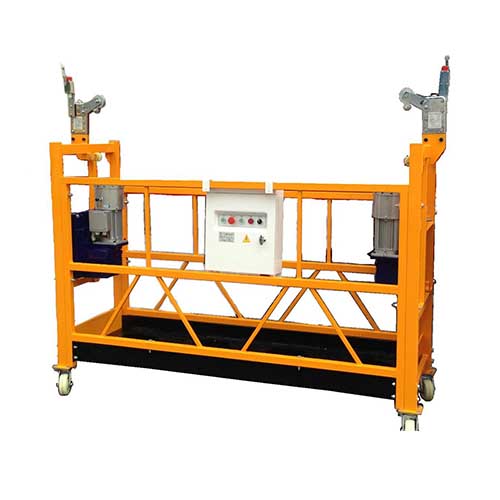

6 meters ZLP630 temporary suspended working platform for building repair

  • Model: ZLP630
  • Platform length: 6 meters
  • Working platform: Painting steel
  • Hoist motor: LTD63
  • Description: ZLP630 suspended working platform
  • INQUIRY   EMAIL

6 meters ZLP630  temporary suspended working platform for building repair

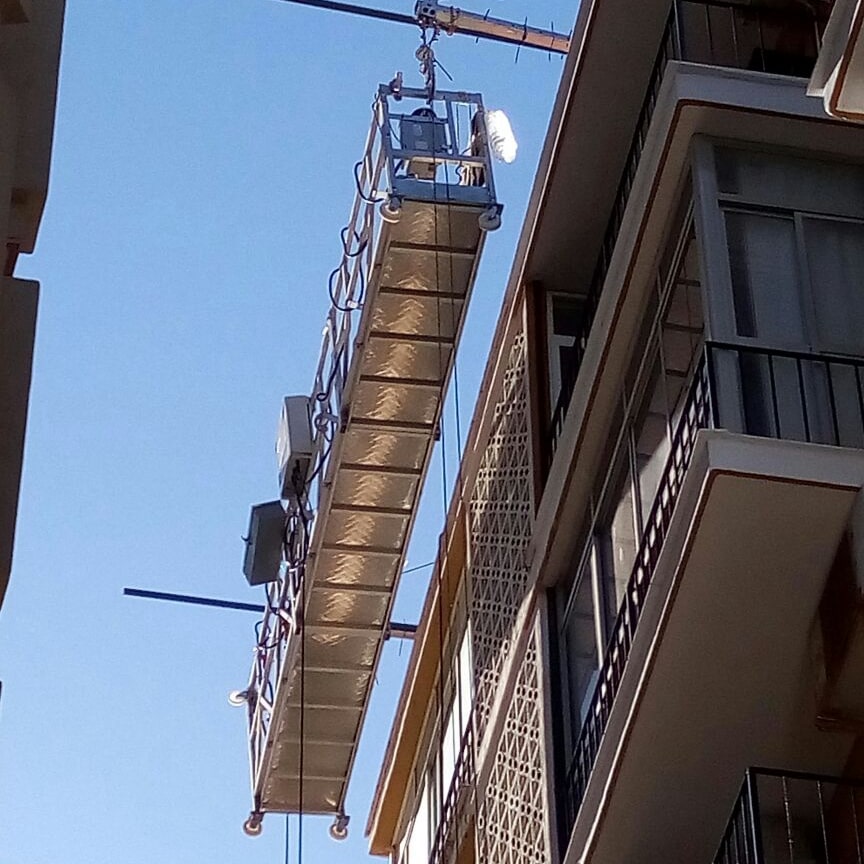

Temporary suspended platforms are suspended access equipment, which are temporarily installed

on a building or structure for specific tasks, such as cladding installation, painting, maintenance,

repair, and refurbishment of building, bridges, chimneys, and other structures.



Specification of Suspended Platform

Model ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000
Rated load(kg) 250 500 600 800 1000
Lifting speed (m/min) 8-10 9-11 9-11 9-11 8-10
Length of platform (mm) 1-1.5 5 6 7.5 7.5
Steel wire rope (mm) 8.3 8.3 8.3 8.6/9.1 9.1
Hoist motor LTD50 LTD63 LTD63 LTD80 LTD80
Motor power (Kw) 1.5 1.5 1.5 1.8 2.2
Voltage (V) 220 / 380 / 415
Frenquency (HZ) 50 / 60
Safety lock LSA30, anti-tilting
Counter weight Cement / Cement with steel cover / Cast iron steel

Delivery of Suspended Platform

  • LCL delivery: with package, steel pallet, wooden pallet.
  • FCL delivery: 20ft/40ft container.




Large accessories, spare parts on stock



 Further is needed, contact us at any time by WP or Email, please.
