Inquiry:
ZLP800

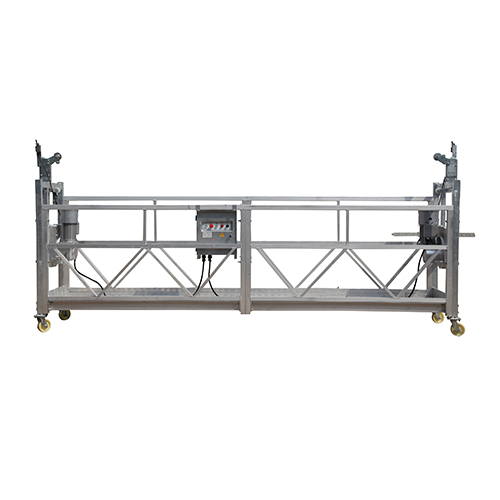

Aluminum 7.5 meters ZLP800 temporary suspended platforms
- Model: ZLP800
- Platform length: 7.5 meters
- Working platform: Aluminum
- Description: Aluminum suspended working platforms
Aluminum 7.5 meters ZLP800 temporary suspended platforms

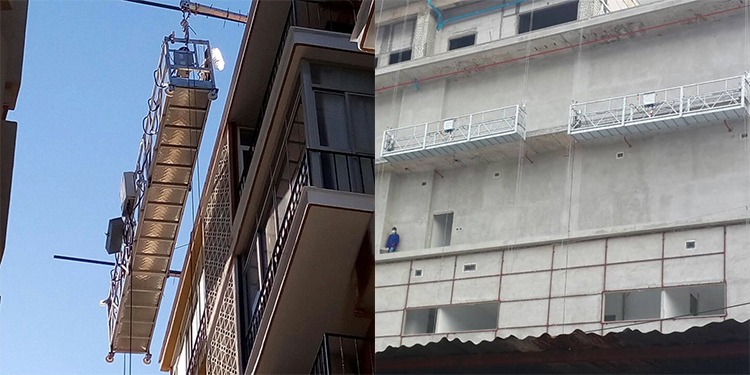

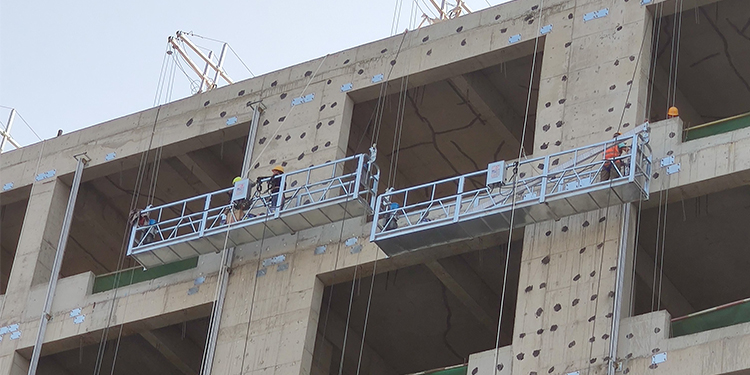

Temporary suspended platforms are suspended access equipment, which are temporarily installed
on a building or structure for specific tasks, such as cladding installation, painting, maintenance,
repair, and refurbishment of building, bridges, chimneys, and other structures.
Main structure:
- Suspension mechanism: Painting steel, galvanized steel
- Working platform: Painting steel, galvanized steel, aluminum
- Hoist motor: LTD63, LTD80
- Safety lock
- Control panel
- Steel wire rope: 8.3mm, 8.6mm, 9.1mm
- Electric cable
- Life line
- Counter weight.
Specification of Suspended Platform
| Model | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated load(kg) | 250 | 500 | 600 | 800 | 1000 |
| Lifting speed (m/min) | 8-10 | 9-11 | 9-11 | 9-11 | 8-10 |
| Length of platform (mm) | 1-1.5 | 5 | 6 | 7.5 | 7.5 |
| Steel wire rope (mm) | 8.3 | 8.3 | 8.3 | 8.6/9.1 | 9.1 |
| Hoist motor | LTD50 | LTD63 | LTD63 | LTD80 | LTD80 |
| Motor power (Kw) | 1.5 | 1.5 | 1.5 | 1.8 | 2.2 |
| Voltage (V) | 220 / 380 / 415 | ||||
| Frenquency (HZ) | 50 / 60 | ||||
| Safety lock | LSA30, anti-tilting | ||||
| Counter weight | Cement / Cement with steel cover / Cast iron steel | ||||
Delivery of Suspended Platform
- LCL delivery: with package, steel pallet, wooden pallet.
- FCL delivery: 20ft/40ft container.
Large accessories, spare parts on stock
Further is needed, contact us at any time by WP or Email, please.
