Suspended platform accessories

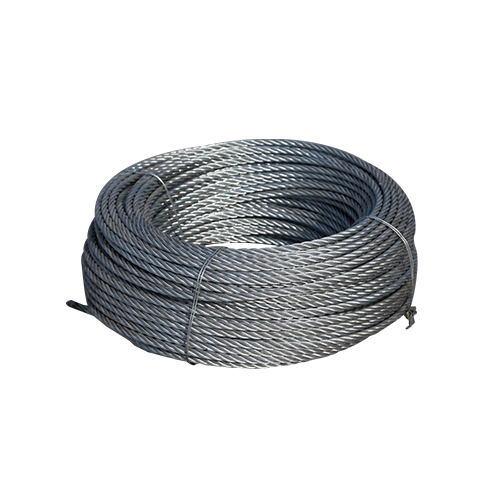

Galvanized steel wire rope 8.3mm for ZLP series suspended platform
- Wire rope: 8.3mm
- Description: 8.3mm wire rope
Galvanized steel wire rope 8.3mm for ZLP series suspended platform

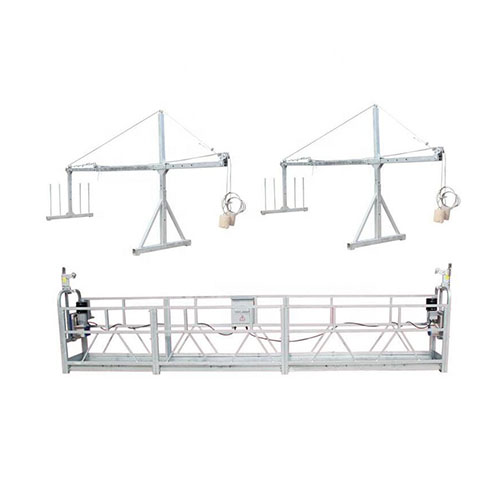

Temporary suspended platforms are suspended access equipment, which are temporarily installed
on a building or structure for specific tasks, such as cladding installation, painting, maintenance,
repair, and refurbishment of building, bridges, chimneys, and other structures.
Specification of Motorized gondola
| Model | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated load(kg) | 250 | 500 | 600 | 800 | 1000 |
| Lifting speed (m/min) | 8-10 | 9-11 | 9-11 | 9-11 | 8-10 |
| Length of platform (mm) | 1-1.5 | 5 | 6 | 7.5 | 7.5 |
| Steel wire rope (mm) | 8.3 | 8.3 | 8.3 | 8.6/9.1 | 9.1 |
| Hoist motor | LTD50 | LTD63 | LTD63 | LTD80 | LTD80 |
| Motor power (Kw) | 1.5 | 1.5 | 1.5 | 1.8 | 2.2 |
| Voltage (V) | 220 / 380 / 415 | ||||
| Frenquency (HZ) | 50 / 60 | ||||
| Safety lock | LSA30, anti-tilting | ||||
| Counter weight | Cement / Cement with steel cover / Cast iron steel | ||||
Delivery of Suspended Platform gondola
- LCL delivery: with package, steel pallet, wooden pallet.
- FCL delivery: 20ft/40ft container.
Large accessories, spare parts on stock
Further is needed, contact us at any time by WP or Email, please.
