ZLP630

  • 380V 50HZ 6 meters ZLP630 temporary rope suspended platform
  • 380V 50HZ 6 meters ZLP630 temporary rope suspended platform
380V 50HZ 6 meters ZLP630 temporary rope suspended platform380V 50HZ 6 meters ZLP630 temporary rope suspended platform

380V 50HZ 6 meters ZLP630 temporary rope suspended platform

  • Model: ZLP630
  • Platform length: 6 meters
  • Working platform: Painting steel
  • Description: 380V 50HZ 6 meters ZLP630 temporary rope suspended platform
  • INQUIRY   EMAIL

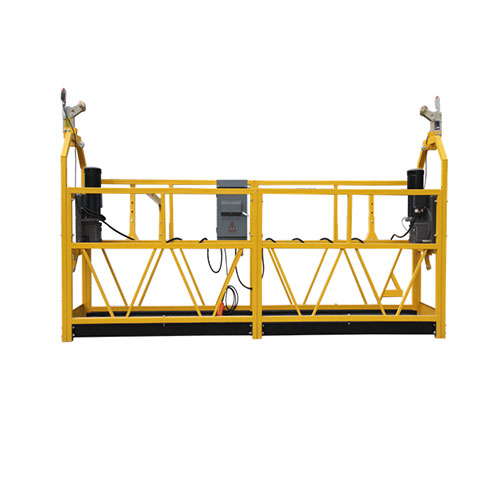

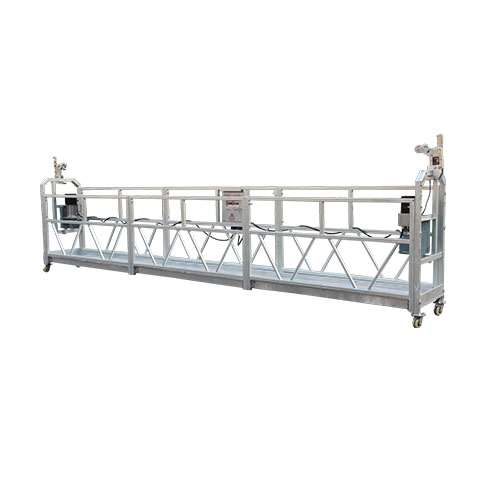

380V 50HZ 6 meters ZLP630 temporary rope suspended platform

The rope suspended working platforms can work on building facades, silos, towers, cooling waters,

industrial plants, etc, without a scaffold.



Temporary suspended platforms are suspended access equipment, which are temporarily installed

on a building or structure for specific tasks, such as cladding installation, painting, maintenance,

repair, and refurbishment of building, bridges, chimneys, and other structures.


The working platform offers enough space for people and materials. You can adjust the working

height of the platform.

                                   Specification of Suspended Platform (gondola)

ModelZLP250ZLP500ZLP630ZLP800ZLP1000
Rated load(kg)2505006008001000
Lifting speed (m/min)8-109-119-119-118-10
Length of platform (mm)1-1.5567.57.5
Steel wire rope (mm)8.38.38.38.6/9.19.1
Hoist motorLTD50LTD63LTD63LTD80LTD80
Motor power (Kw)1.51.51.51.82.2
Voltage (V)220 / 380 / 415
Frenquency (HZ)50 / 60
Safety lockLSA30, anti-tilting
Counter weightCement / Cement with steel cover / Cast iron steel

Delivery of Suspended Platform

  • LCL delivery: with package, steel pallet, wooden pallet.

  • FCL delivery: 20ft/40ft container.



Except the complete suspended platform, we can deliver the safety locks, hoist motors,

wire rope and spare parts seperately as per your requirements.




 Further is needed, contact us at any time by WP or Email, please.









Inquiry:
