Inquiry:
ZLP800
380V 50HZ painted steel window cleaning suspended working platform
- Model: ZLP800
- Platform: 7.5m
- Hoist motor: LTD80
- Wire rope: 8.6mm/9.1mm
- Description: 380V 50HZ painted steel window cleaning suspended working platform

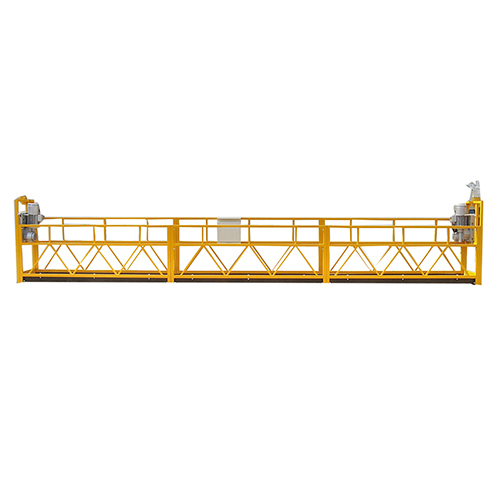

380V 50HZ painted steel window cleaning suspended working platform

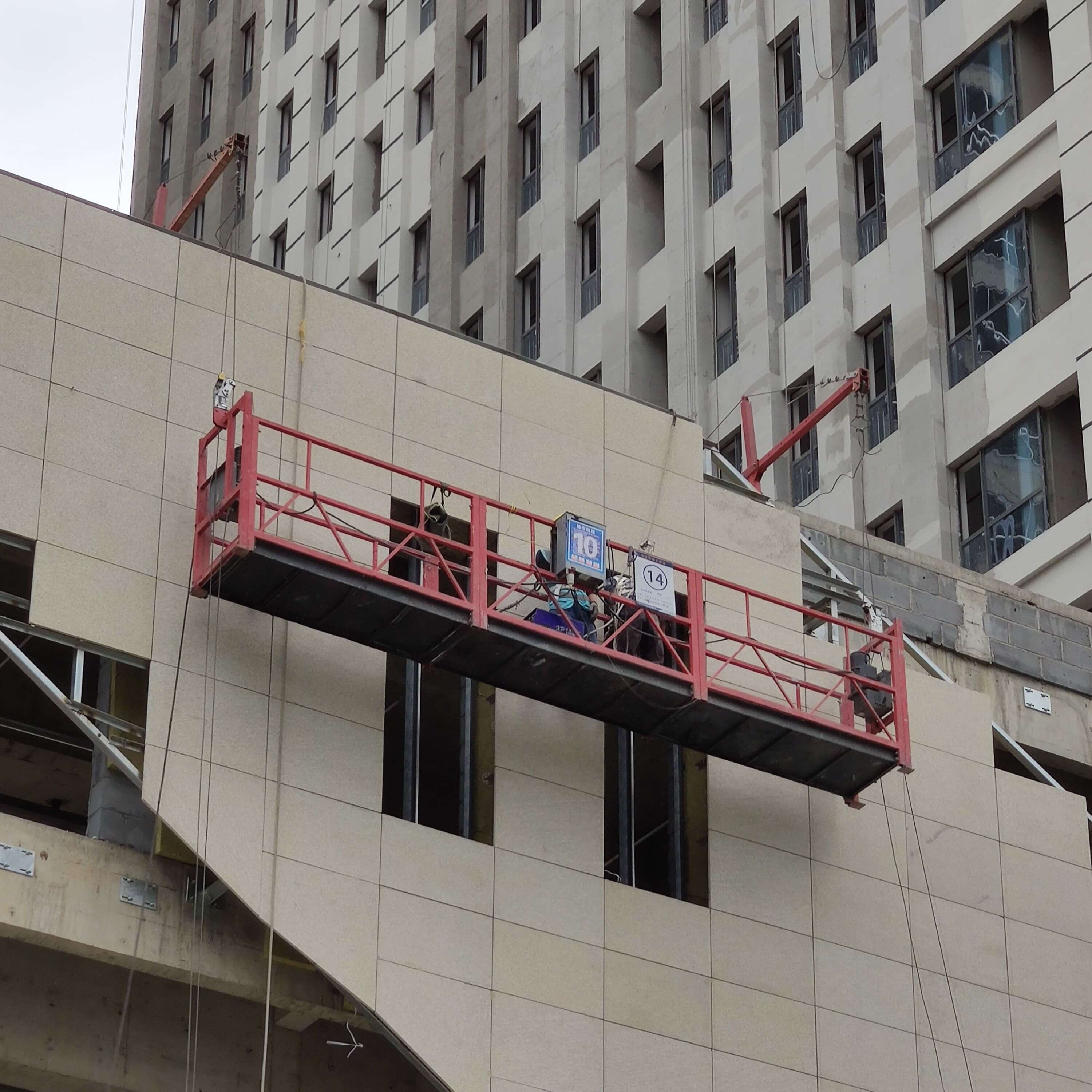

Temporary suspended platforms are suspended access equipment, which are temporarily installed
on a building or structure for specific tasks, such as cladding installation, painting, maintenance,
repair, and refurbishment of building, bridges, chimneys, and other structures.
Specification of Suspended Platform
| Model | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated load(kg) | 250 | 500 | 600 | 800 | 1000 |
| Lifting speed (m/min) | 8-10 | 9-11 | 9-11 | 9-11 | 8-10 |
| Length of platform (mm) | 1-1.5 | 5 | 6 | 7.5 | 7.5 |
| Steel wire rope (mm) | 8.3 | 8.3 | 8.3 | 8.6/9.1 | 9.1 |
| Hoist motor | LTD50 | LTD63 | LTD63 | LTD80 | LTD80 |
| Motor power (Kw) | 1.5 | 1.5 | 1.5 | 1.8 | 2.2 |
| Voltage (V) | 220 / 380 / 415 | ||||
| Frenquency (HZ) | 50 / 60 | ||||
| Safety lock | LSA30, anti-tilting | ||||
| Counter weight | Cement / Cement with steel cover / Cast iron steel | ||||
Delivery of Suspended Platform gondola
- LCL delivery: with package, steel pallet, wooden pallet.
- FCL delivery: 20ft/40ft container.
Our suspended platlform gondola in Thailand,Vietnam, Malaysia, Indonesia,
Philippines,India, Chile, Peru, Colombia, Nigeria, etc, more than 20 countris.
Except the complete handing scaffolding platform and hoist motors, safety locks,
we also have large quantity of spare parts.
Further is needed, contact us at any time by WP or Email, please.
