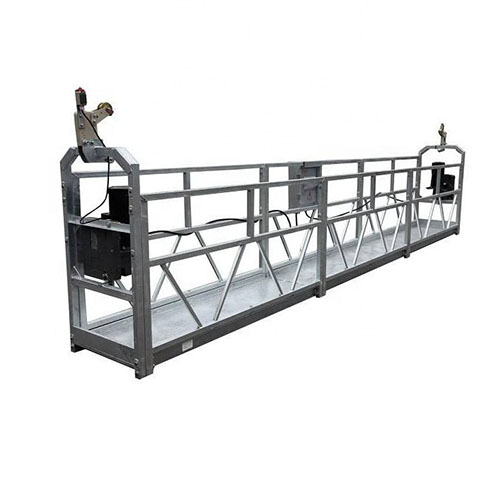

Aluminum construction building cradle ZLP630 6m for window cleaning
Configuration
--Roof suspension mechanism with counterweight;
--Modular working platform;

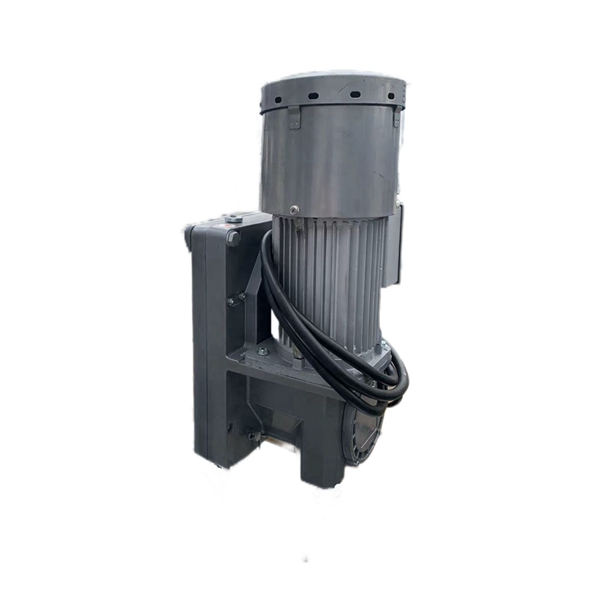

--LTD hoist motor;

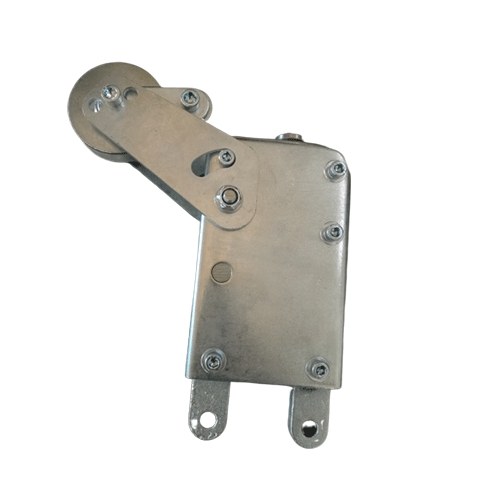

--Safety lock;
--Steel wire rope;
--Electric cable;
--Lifeline
Temporary suspended platforms are suspended access equipment, which are temporarily installed
on a building or structure for specific tasks, such as cladding installation, painting, maintenance,
repair, and refurbishment of building, bridges, chimneys, and other structures.
Specification of Suspended Platform (gondola)
Model | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
Rated load(kg) | 250 | 500 | 600 | 800 | 1000 |
Lifting speed (m/min) | 8-10 | 9-11 | 9-11 | 9-11 | 8-10 |
Length of platform (mm) | 1-1.5 | 5 | 6 | 7.5 | 7.5 |
Steel wire rope (mm) | 8.3 | 8.3 | 8.3 | 8.6/9.1 | 9.1 |
Hoist motor | LTD50 | LTD63 | LTD63 | LTD80 | LTD80 |
Motor power (Kw) | 1.5 | 1.5 | 1.5 | 1.8 | 2.2 |
Voltage (V) | 220 / 380 / 415 | ||||
Frenquency (HZ) | 50 / 60 | ||||
Safety lock | LSA30, anti-tilting | ||||
Counter weight | Cement / Cement with steel cover / Cast iron steel |
Delivery of Suspended Platform
LCL delivery: with package, steel pallet, wooden pallet.
FCL delivery: 20ft/40ft container.
Except the complete suspended platform, we can deliver the safety locks, hoist motors,
wire rope and spare parts seperately as per your requirements.
Further is needed, contact us at any time by WP or Email, please.
