ZLP630

  • Aluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru
  • Aluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru
  • Aluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru
  • Aluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru
Aluminum electric hanging scaffolding ZLP630 220V 60HZ in PeruAluminum electric hanging scaffolding ZLP630 220V 60HZ in PeruAluminum electric hanging scaffolding ZLP630 220V 60HZ in PeruAluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru

Aluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru

  • Model: ZLP630
  • Platform length: 6 meters
  • Working platform: Painting steel
  • Description: Aluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru
  • INQUIRY   EMAIL

Aluminum electric hanging scaffolding ZLP630 220V 60HZ in Peru

Configuration

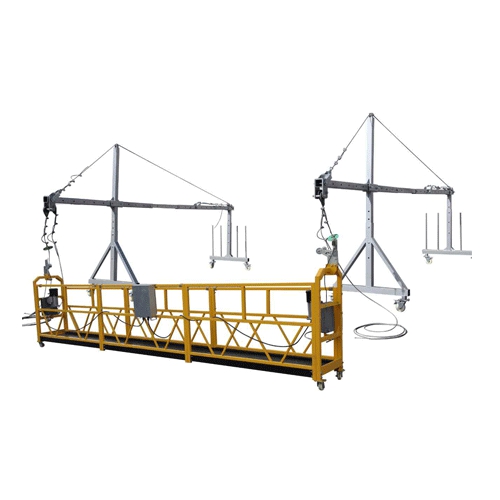

--Roof suspension mechanism with counterweight;

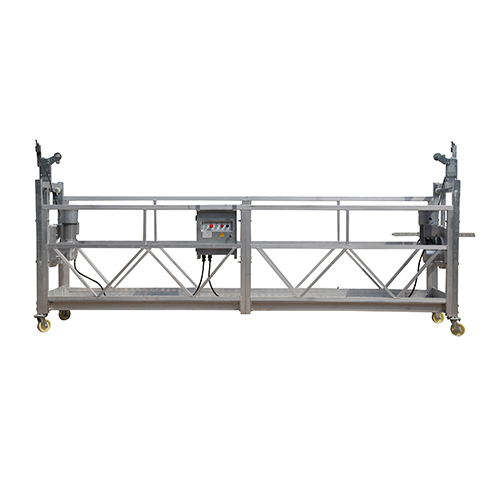

--Modular working platform;

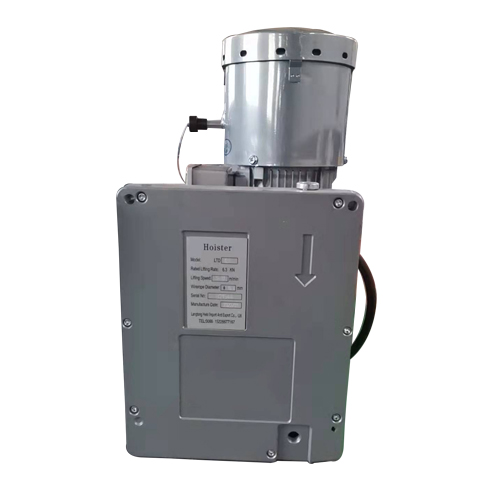

--LTD hoist motor;

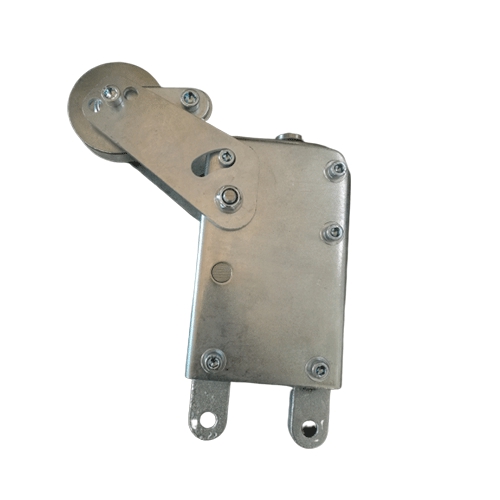

--Safety lock;

--Steel wire rope;

--Electric cable;

--Lifeline

Temporary suspended platforms are suspended access equipment, which are temporarily installed

on a building or structure for specific tasks, such as cladding installation, painting, maintenance,

repair, and refurbishment of building, bridges, chimneys, and other structures.



                                   Specification of Suspended Platform (gondola)

ModelZLP250ZLP500ZLP630ZLP800ZLP1000
Rated load(kg)2505006008001000
Lifting speed (m/min)8-109-119-119-118-10
Length of platform (mm)1-1.5567.57.5
Steel wire rope (mm)8.38.38.38.6/9.19.1
Hoist motorLTD50LTD63LTD63LTD80LTD80
Motor power (Kw)1.51.51.51.82.2
Voltage (V)220 / 380 / 415
Frenquency (HZ)50 / 60
Safety lockLSA30, anti-tilting
Counter weightCement / Cement with steel cover / Cast iron steel



Delivery of Suspended Platform

  • LCL delivery: with package, steel pallet, wooden pallet.

  • FCL delivery: 20ft/40ft container.


Except the complete suspended platform, we can deliver the safety locks, hoist motors,

wire rope and spare parts seperately as per your requirements.




 Further is needed, contact us at any time by WP or Email, please.
