ZLP630

Aluminum ZLP630 ZLP800 electric hanging platform with counter weight

Item: Suspended platform
Load: 630kg
Working platform: Galvanized steel
Working height: 100m
Description: Aluminum 6m temporary suspended scaffolding working platform
INQUIRY EMAIL

Aluminum ZLP630 ZLP800 electric hanging platform with counter weight

Temporary suspended platforms, which are commonly known as gondolas, are widely used.

They carry workers, site personnel, or engineers for working at height during the installation of curtain walls, and windows, windows cleaning, external renovation and decoration of buildings, bridges, chimneys, silos, and other structures.

Configuration

Roof suspension mechanism with counterweight;

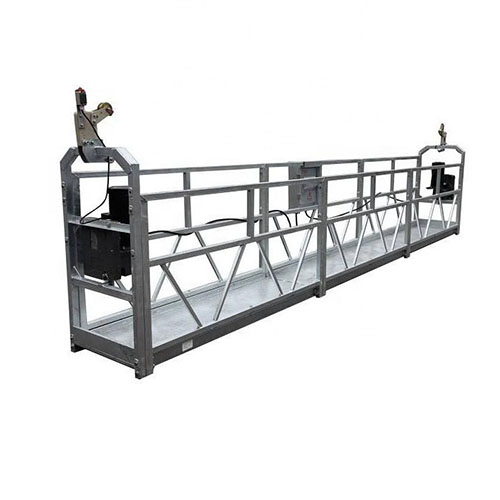

Modular working platform;

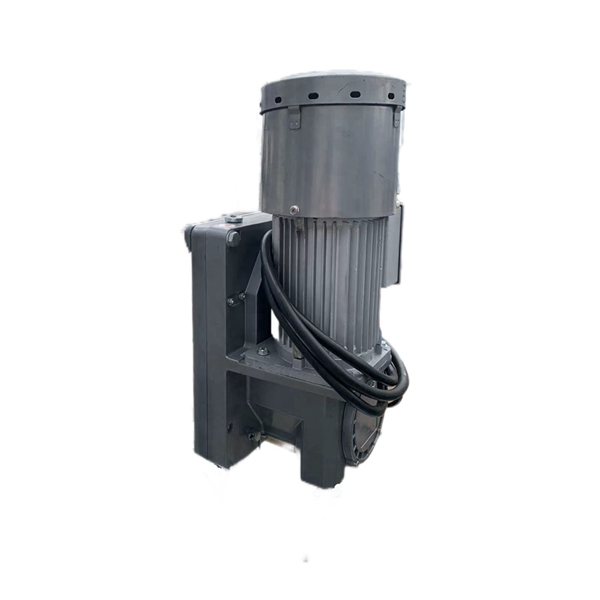

LTD hoist motor;

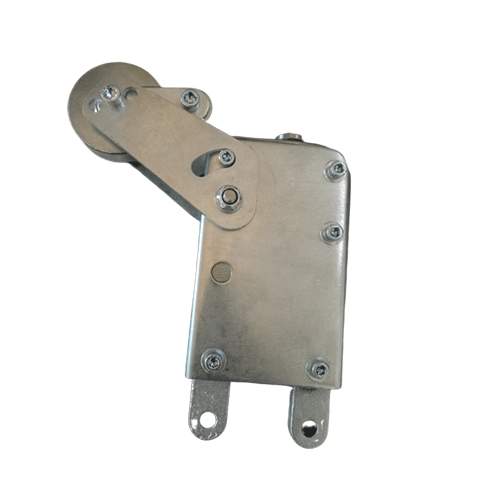

Safety lock;
Steel wire rope;
Electric cable;
Lifeline

Specification of Suspended Platform (gondola)

Model	ZLP250	ZLP500	ZLP630	ZLP800	ZLP1000
Rated load(kg)	250	500	600	800	1000
Lifting speed (m/min)	8-10	9-11	9-11	9-11	8-10
Length of platform (mm)	1-1.5	5	6	7.5	7.5
Steel wire rope (mm)	8.3	8.3	8.3	8.6/9.1	9.1
Hoist motor	LTD50	LTD63	LTD63	LTD80	LTD80
Motor power (Kw)	1.5	1.5	1.5	1.8	2.2
Voltage (V)	220 / 380 / 415
Frenquency (HZ)	50 / 60
Safety lock	LSA30, anti-tilting
Counter weight	Cement / Cement with steel cover / Cast iron steel
