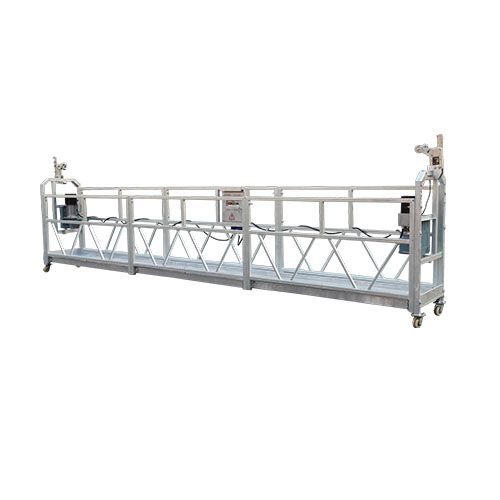

Indonesia aluminum 6 meters 630kg load temporary gondola for window installation
The rope suspended working platforms can work on building facades, silos, towers, cooling waters,
industrial plants, etc, without a scaffold.
Temporary suspended platforms are suspended access equipment, which are temporarily installed
on a building or structure for specific tasks, such as cladding installation, painting, maintenance,
repair, and refurbishment of building, bridges, chimneys, and other structures.
The working platform offers enough space for people and materials. You can adjust the working
height of the platform.
Specification of Suspended Platform (gondola)
Model | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
Rated load(kg) | 250 | 500 | 600 | 800 | 1000 |
Lifting speed (m/min) | 8-10 | 9-11 | 9-11 | 9-11 | 8-10 |
Length of platform (mm) | 1-1.5 | 5 | 6 | 7.5 | 7.5 |
Steel wire rope (mm) | 8.3 | 8.3 | 8.3 | 8.6/9.1 | 9.1 |
Hoist motor | LTD50 | LTD63 | LTD63 | LTD80 | LTD80 |
Motor power (Kw) | 1.5 | 1.5 | 1.5 | 1.8 | 2.2 |
Voltage (V) | 220 / 380 / 415 | ||||
Frenquency (HZ) | 50 / 60 | ||||
Safety lock | LSA30, anti-tilting | ||||
Counter weight | Cement / Cement with steel cover / Cast iron steel |
Delivery of Suspended Platform
LCL delivery: with package, steel pallet, wooden pallet.
FCL delivery: 20ft/40ft container.
Except the complete suspended platform, we can deliver the safety locks, hoist motors,
wire rope and spare parts seperately as per your requirements.
